FEATURES
- Configurable WAN Router with up to 10 Gigabit Ethernet ports, 16 T1/E1 ports, or 32 serial connections.
- Next generation hardware and software architecture to provide maximum speed and flexibility.
- Advance firewall and security features provide high level of network protection.
- Protocol support for both legacy interfaces and next generation MPLS transport.
- Substation-hardened, IEC61850-3 compliant, choice of fan-cooled or convection-cooled options.
- Dual hot-swappable power supplies in a 1U or 1.5U rack-mount package.
Configurable and Reliable

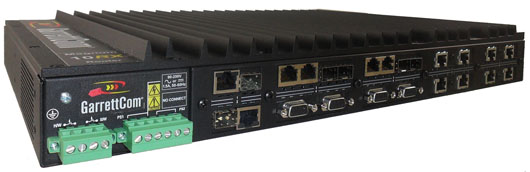

The Magnum 10RX is a configurable router and security appliance offering traditional T1/ E1 WAN routing, MPLS and advanced serial or terminal server functionality. The Magnum 10RX complies with IEC 61850 and is ideal for large substation installations or similar applications where hardness, performance, security, quality of service or diverse protocols are required. The hardware and software versatility of the Magnum 10RX provides flexibility in interworking legacy serial and WAN protocols with next generation high performance Gigabit Ethernet and TCP/IP technology. The Magnum 10RX supports up to 10 Gigabit Ethernet ports and 16 T1/E1* connections, as well as hot-swappable dual power supplies. Each Magnum10RX router / security appliance includes advanced thermal design techniques that result in cooler operation of internal electronic components, leading to longer lifetime and increased availability. *channelized T1/E1 support scheduled for future release
Next Generation Technology
The Magnum 10RX offers reliability and configurable redundancy with high voltage AC/DC and low voltage DC hot-swappable power supplies. The software monitors each power supply and detects power supply faults and signal when a power supply module swap is needed. The swapping can readily be done without interruption to the system.® The Magnum 10RX is a next generation router and security appliance designed for mission critical applications such as power utility substations and smart grid deployments. By combining a high function router with firewall and secure virtual private network (VPN) capabilities, the Magnum10RX provides the WAN connectivity and security functions needed to provide highly reliable interworking between substations, or other mission critical network elements. The ten configuration slots in the Magnum 10RX provide the flexibility for network designers to configure up to ten Gigabit Ethernet ports using modules that support both copper and SFP ports, as well as up to 16 T1/E1 ports.
Software and Secuirty
The Magnum 10RX is highly configurable utilizing the advanced Industrial Network Operating System (INOS) and supports a wide range of routing protocols including RIP, OSPF, BGP, and others. The integrated firewall ensures maximum perimeter protection with features such as address/port inspection and filtering as well as secures VPN connections with strong 3DES and AES encryption. The VPN’s comply to various IPsec/VPN standards and have proven interoperability with other industry standard VPN devices. Cyber security capabilities cover both electronic perimeter protection for remote sites and management security for the Magnum 10RX. Advanced statistics and event recording are available with downloadable local logs, SNMP MIBs and traps, and syslog remote logging.
Hardened Design
The Magnum 10RX has a hardened metal case for regular or reverse rack mounting, autoranging power supplies for operation with standard AC power (worldwide), or internal DC power supply choices. For moisture and corrosion protection, conformal coating is optional. The Magnum 10RX unit is designed and manufactured in the USA.
Design for Performance
The Magnum10RX Router and Security Appliance has integrated hardware assist for encryption to maximize the number of secure VPN channels available to network designers. In addition, the platform uses next generation hardware and software architecture to deliver maximum performance for critical tasks. Finally, the integration of advanced thermal management and dual hot-swappable power supplies provides for maximum uptime and reliability.
