FEATURES
- Secure network access to remote sites and industrial devices
- Electronic Security Perimeter via stateful firewall and VPN services
- Integrated serial device server and Ethernet switch
- T1/E1 and DDS with CSU/ DSU for IP TDM, frame relay and MPLS-based services
- Hardened to substation EMI/ESD specs and -40° C to +85°C with no fans

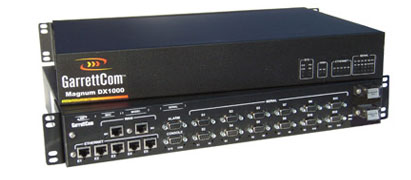

The DX1000-IR Industrial Router provides a secure integrated networking solution for power utility substations and other rugged environments. SCADA, remote device access, physical surveillance, metering and other applications can effectively share a single DX1000-IR-based network.

The DX1000-IR provides IP routing services in both LAN and WAN applications. Ethernet ports operate in switched and/or routed mode. IP routing is provided on any combination of physical and virtual interfaces, including per VLAN. WAN interfaces include dual T1/E1 or dual DDS ports with integral CSU/DSU for access to public or private IP, TDM, frame relay or MPLS-based services. IP/PPP/async is also supported on serial interfaces, which provides a dial-up WAN option when combined with external AT-compatible modems. Other IP services include dynamic routing (RIP, OSPF, BGP), virtual router redundancy (VRRP), DHCP server, and many security features..

Cyber security capabilities cover both electronic perimeter protection for remote sites and management security for the DX1000-IR itself. The DX1000-IR provides a stateful IP firewall, IP address translation (NAT/PAT) and encryption options via IPsec, SSH port forwarding and serial port SSL VPNs. Combined with the CrossBow™ Secure Access Manager, the DX1000-IR provides for authentication, authorization., logging and compliance reporting for remote user access to local devices. DX management security includes encrypted interfaces (HTTPS, SSH, SFTP and SNMPv3), multi-level user IDs with strong form passwords, authentication via RADIUS, and extensive local and/or remote logging and alerting. A flexible integrated protocol analyzer provides remote trouble shooting and detailed traffic analysis.

Serial-IP terminal services support diverse serial interfaces and protocols including DNP, telnet, raw mode, and Modbus-ASCII/RTU to Modbus-TCP internetworking. GarrettCom’s SCADA Frame Forwarding feature also provides a low-overhead, “non-routable” solution for SCADA protocols over a Digital TDM or Frame Relay WAN.

The DX1000-IR is purpose-built for extremely harsh environments such as power utility substations. The DX1000-IR meets IEEE1613 and IEC 61850-3 specifications for EMI/ ESD protection and operates at -40°C to +85°C without open vent holes or fans. The DX1000-IR has both single and dual wide-ranging power supply options.
