FEATURES
- Next Generation configurability with 2 E1/T1 WAN ports and up to 28 serial ports, or up to eight Ethernet ports
- Configurable IRIG-B Timing Modules
- Hot-Swappable Power Supply choices include AC/DC (90-250V), -48VDC, and 24VDC
- Energy-efficient advanced thermal design enables cool operation at extended temperatures
- Substation Hardened, suitable for Protection systems and SCADA applications
- Modbus TCP and Modbus ASCII/RTU internetworking
- Exceeds IEC 61850 and IEEE 1613 Environmental Standards for Substation Automation
- Network management security software, including VLANs, SSH, SSL, DHCP
- Cyber security and perimeter security including firewall, IPsec, VPN, static routing, RIP, OSPF, BGP, VRRP
- Switching or routing configurable on each Ethernet port
- Ethernet switching with VLANs, QoS and high performance RSTP
Configurable and Reliable

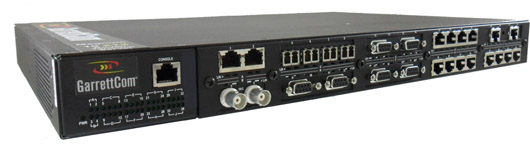

The Magnum 10XTS Router Terminal Server offers T1/E1 routing as well as advanced serial and Ethernet port configurability for heavy duty industrial applications where maximum port count and diversity are required. The Magnum 10XTS is ideal for large substation installations with large numbers of serial and Ethernet instruments and the need for high-speed WAN access. The Magnum 10XTS offers two WAN ports via a T1/E1 card, up to eight Ethernet ports or 28 serial ports and IRIG-B time coding. The 10XTS provides configurability, reliability, and functionality in a 1U hardened rack-mount package. The 10XTS also offers the flexibility of switching or routing on all of the Ethernet ports. Each 10XTS Router Terminal Server includes advanced thermal design techniques that result in cooler operation of internal electronic components, leading to longer life-time and increased reliability.
Next Generation Technology
The Magnum 10XTS offers next generation reliability and configurable redundancy, with high voltage AC/DC and low voltage DC hotswappable power supplies. Software monitors each power supply, and detects power supply faults and signal when a power supply module swap is needed. The swap-out can readily be done while the 10XTS continues in operation. Next Generation industrial terminal server features, for mission-critical control devices such as those found in power utility facilities in the Smart Grid, importantly include IRIG-B timing synchronization. Each Magnum 10XTS may be configured with an IRIG-B Timing Card and a selection of IRIG-B port modules to provide time synchronization for Protection, SCADA and other devices. The ten configuration slots in the Magnum 10XTS provide the flexibility for network designers to configure up to eight 100Mb Ethernet ports in different fiber and copper combinations and up to 28 serial ports. Both DB-9 and RJ45 serial connector types are available. Modules may be configured for regular port types, IRIG-B timing, or combinations..
Software and Secuirty
The configurability of Magnum 10XTS extends to MNS-DX software features as well. A licensed software key unlocks additional features for extra security. Extra security features such as IPSec/VPN, firewall, RADIUS, syslog and other security capabilities can be added to MNS-DX via MNS-DX-SECURE, which also provides IP firewall features including address/port inspection/filtering; VPN connectivity over IPsec with strong 3DES and AES encryption and both shared key (PSK) and X.509 certificates. VPNs comply to various IPSec/VPN standards and have proven interoperability with other industry standard VPN devices. Cyber security capabilities cover both electronic perimeter protection for remote sites and management security for the 10XTS. Advanced statistics and event recording are available with downloadable local logs, SNMP MIBs and traps, and syslog remote logging. Advanced routing capability for OSPF and BGP networks is enabled using the MNS-DX-ADVAR software license key.
Rugged Design
Magnum 10XTS Managed Terminal Servers have rugged metal cases for regular or “Reverse” rackmounting, and auto-ranging power supplies for operation with standard AC power worldwide, or internal DC power supply choices. Moistureand corrosion-protecting Conformal Coating is optional. The Magnum 10XTS unit is designed and manufactured in the USA.
Warranty
Five Years.
